Fifteenth century crossbow. © Wallace Collection.
For several centuries, the crossbow earned a reputation (not wholly undeserved) for villainy--crossbows were used against no less than 3 English monarchs during the 12th century. In fact, the crossbow was twice the subject of papal bans (in 1096 and 1139). The only exception was against infidels.
Outside of England, where the longbow was seemingly mandated as a national pastime, the crossbow was favored for several notable reasons: it required very little training; its ammunition was comparatively less expensive; and, it could be kept fully spanned for a considerable amount of time. By contrast, the English warbow took many years to master and its wielder could do little more than (mightily) draw and shoot.
Crossbowmen were extensively employed by the English for garrisoning towns and castles during the Hundred Years War. They earned a daily wage of 8d per day--the equivalent of a man-at-arms and notably more than the 6d earned by the more heralded longbowman. The higher wage is due to the fact that campaigning soldiers typically owned their own equipment and crossbowmen were almost always very well-armoured.
Construction
The lath, or bow, was often made of Yew like the longbow, except, for a time, it was not composite, or made from multiple layers glued together. This was likely due to the earlier limitations of the lock mechanism prevented greater draw weights. Early composite laths were generally of wood backed by horn and/or whalebone and wrapped in sinew. Steel laths appeared in the early 14th century. However, they were to remain low-powered until the development of steel production allowed for cleaner metals with higher carbon contents. Prior to that time, steel laths could break under the strain of a high draw weight, which would likely cause considerable injury to the wielder. Many were painted or treated or covered to prevent rust. Some surviving examples were fitted with safety cords bound around the lath and secured with glue to help contain metal shards in the event of breakage. The gaffle, often called a goat's foot lever, appears in art from about mid-14th century. It provided a mechanical advantage of about 5:1.
High-Status Weapon

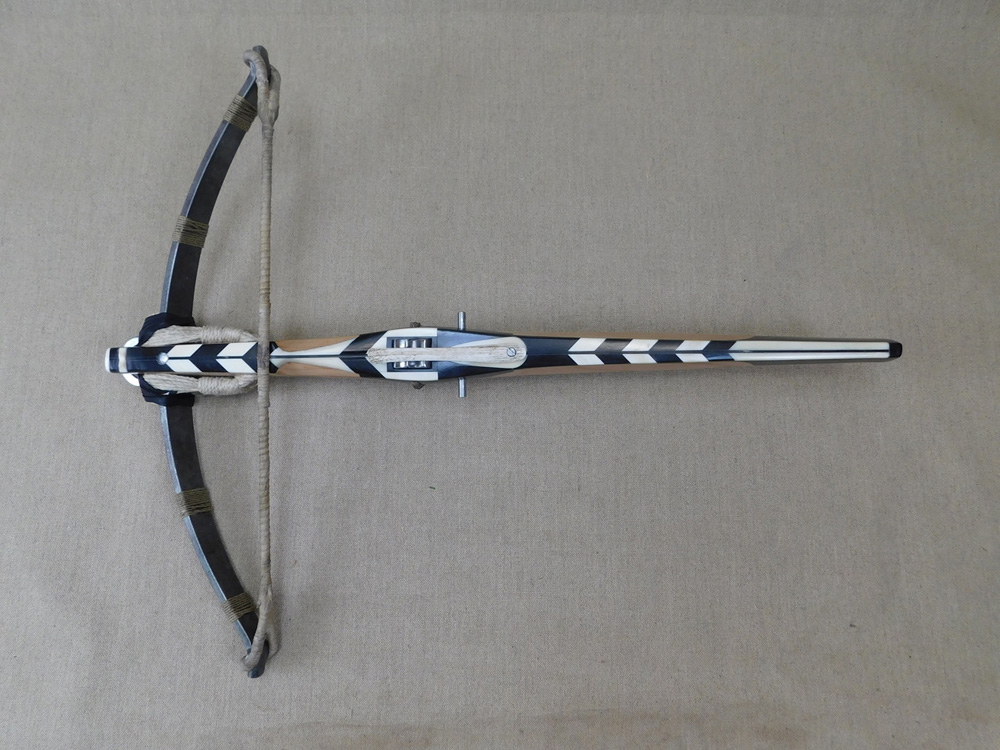

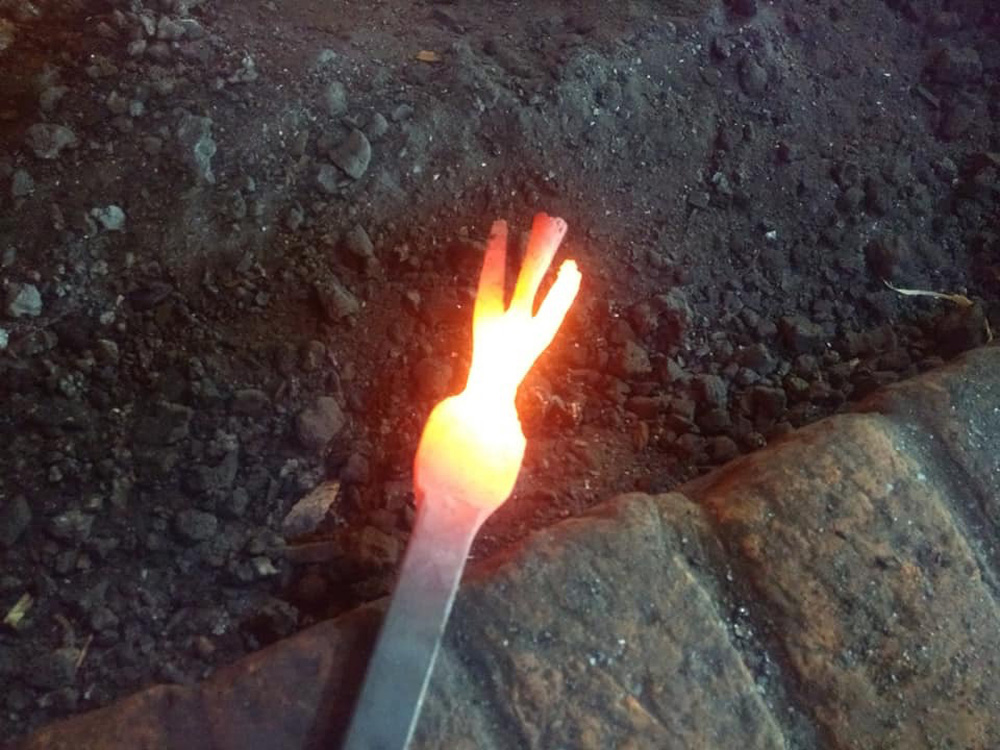

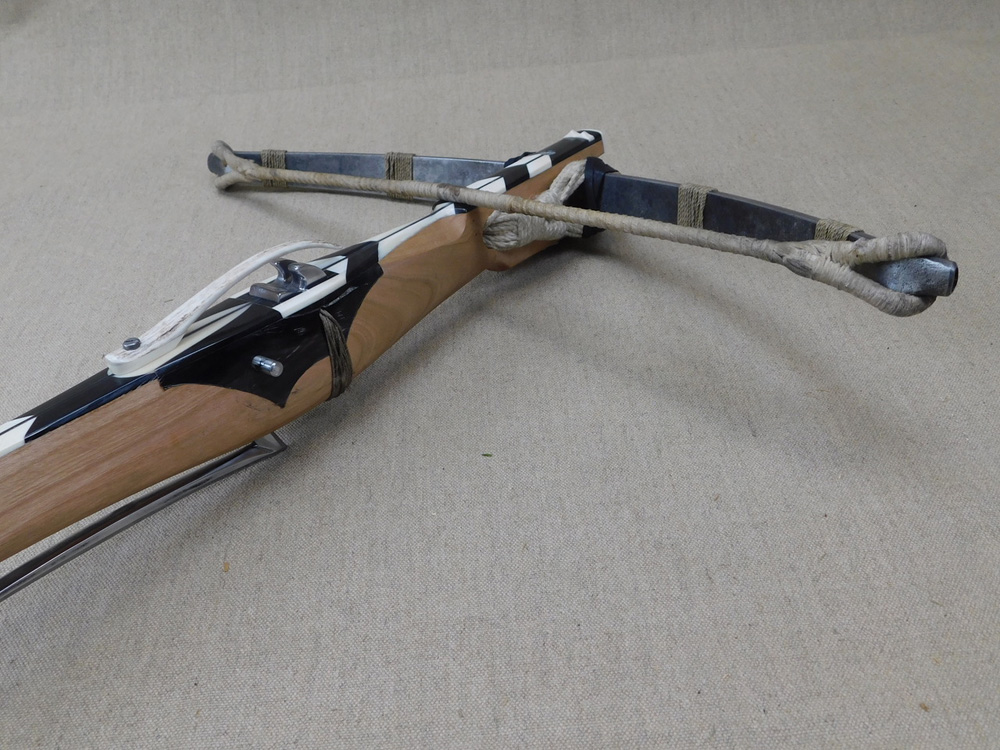

Regardless to how the crossbow was viewed on the battlefield, it was ever a high-status hunting weapon. The crossbow of noblemen sometimes had a veneer of intricately-carved stag horn and/or elaborate patterned inlays. I recently commissioned a fifteenth-century Central European hunting crossbow from Danilo "Tod" Todeschini of Tod's Workshop. Tod's expert craftsmanship is featured extensively in Mike Loades's book The Crossbow. In the German style, its cherry wood stock features a pattern inlay of camel bone and ox horn, which are meant to simulate the ivory, antler, and whalebone found in the surviving examples. A bolt bridge, or cradle, elevates the bolt slightly off of the tiller to reduce friction and drag. Its steel roller nut is secured with waxed cord. The prod is forged from tempered steel and held in place with decorative woven leather over hemp binding. In keeping with the historical aesthetic, the prod also has safety cords (previously explained) despite the fact that there is practically no chance of catastrophic failure using modern steel. The bowstring is made in the traditional way from linen. Tod added a horn bolt clip to help keep the bolt from slipping out of the roller while on horseback, though they are not seen until about 1500. The bolts are feather-fletched on ash wood shafts. The wooden blunts have a steel pin core, and the barbed heads were hand-forged by Will Sherman of Medieval Arrows.
Reference:
Loades, Mike. The Crossbow. Osprey Publishing, New York. 2018.
Todeschini, Danilo. Tod's Stuff. http://www.todsworkshop.com.
The following photographs were provided by Danilo Todeschini of Tod's Workshop and Will Sherman of Medieval Arrows.
